Connect your cluster

You have an organization and the AWS resources your data plane runs on. Now connect your EKS cluster to Union.ai, and Union.ai installs the data plane into it. Your code, data and credentials stay in your AWS account.

Nothing dials in. You install an agent into your cluster, and the agent connects out to Union.ai. You do not open a port, expose an endpoint, or hand over cluster credentials.

What you’ll need

The values printed at the end of Provision your AWS resources. If you are using AWS resources you already had, collect the same values for them, and check that they meet the requirements first:

S3 bucket URI: the metadata bucket, for example s3://my-team-union-selfserve-metadata
AWS account ID: the 12-digit ID of the account that holds Secrets Manager
AWS Region: the Region the cluster and Secrets Manager are in
Image registry URI: the address of the ECR repository. It has the form <account-id>.dkr.ecr.<region>.amazonaws.com/<repository-name>, for example 123456789012.dkr.ecr.us-east-2.amazonaws.com/my-team-union-selfserve.
System IAM role ARN
Task IAM role ARN

You also need Helm installed, and kubectl access to the EKS cluster from the shell where you ran aws eks update-kubeconfig.

1. Create the cluster pool

A cluster pool groups clusters that share an S3 bucket, a secret store and an image registry. A new organization has none, so you create one first.

In the Union.ai UI, select Connect your cluster, on the home page or in the sidebar.
The dialog tells you there is no cluster pool yet. Select Create cluster pool.

Select AWS, and fill in the form:

Field	Value
S3 Bucket	The S3 bucket URI
Account ID	The AWS account ID
Region	The AWS Region
Image registry	The image registry URI

Your first pool is always named default, so the Pool name field is already filled in.

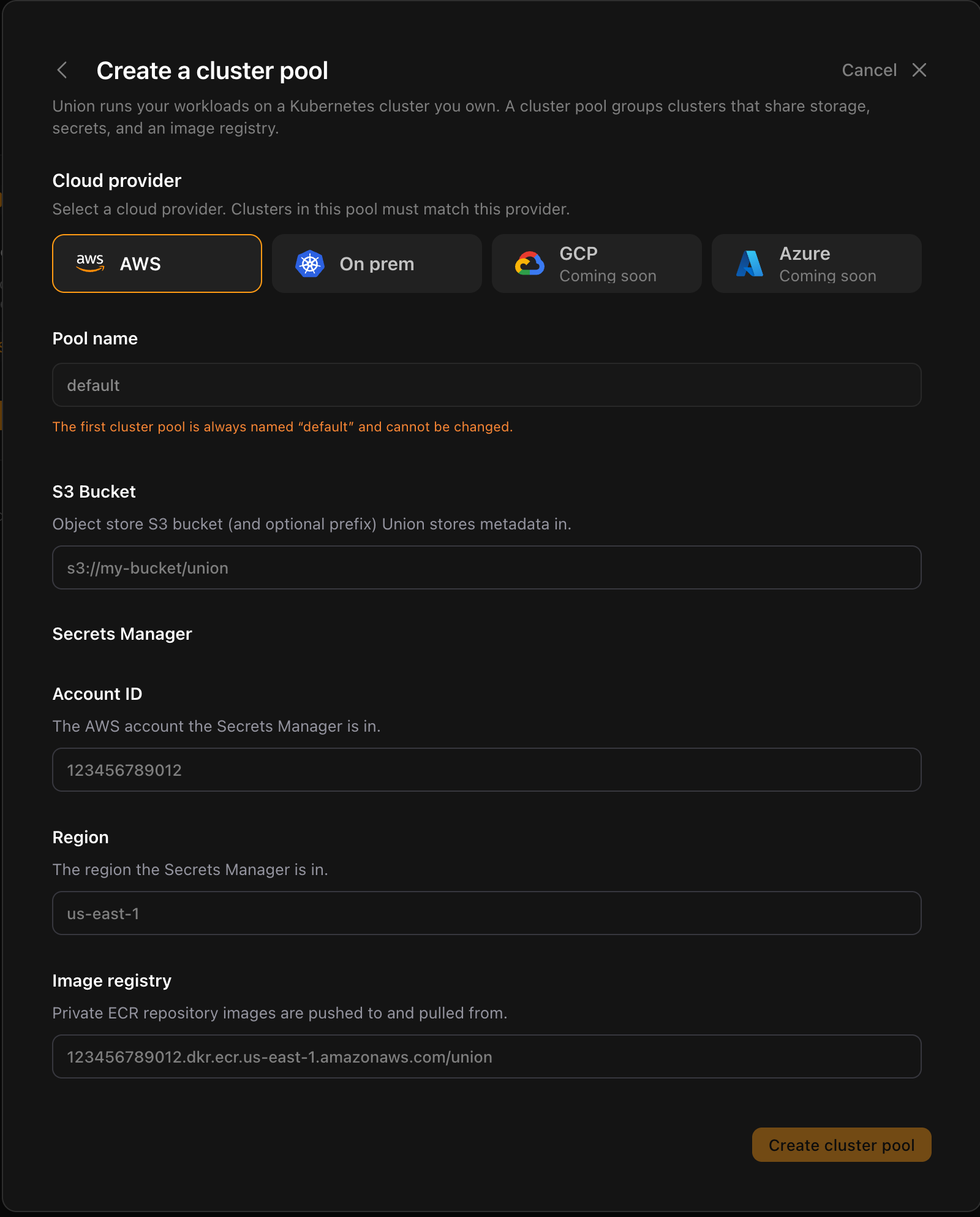

The Create a cluster pool form on the AWS tab, with S3 bucket, Secrets Manager account ID and region, and image registry fields

Select Create cluster pool.

No secret needs to exist in Secrets Manager yet. The data plane creates and manages runtime secrets in that account and Region as it needs them.

2. Connect the cluster

When the pool is created, the dialog moves straight on to Connect a cluster, with your new pool already selected. Fill in:

Field	Value
Name	A name for the cluster in Union.ai, for example `my-cluster`. You cannot change it once the cluster is connected.
System IAM Role ARN	The system IAM role ARN
Task IAM Role ARN	The task IAM role ARN

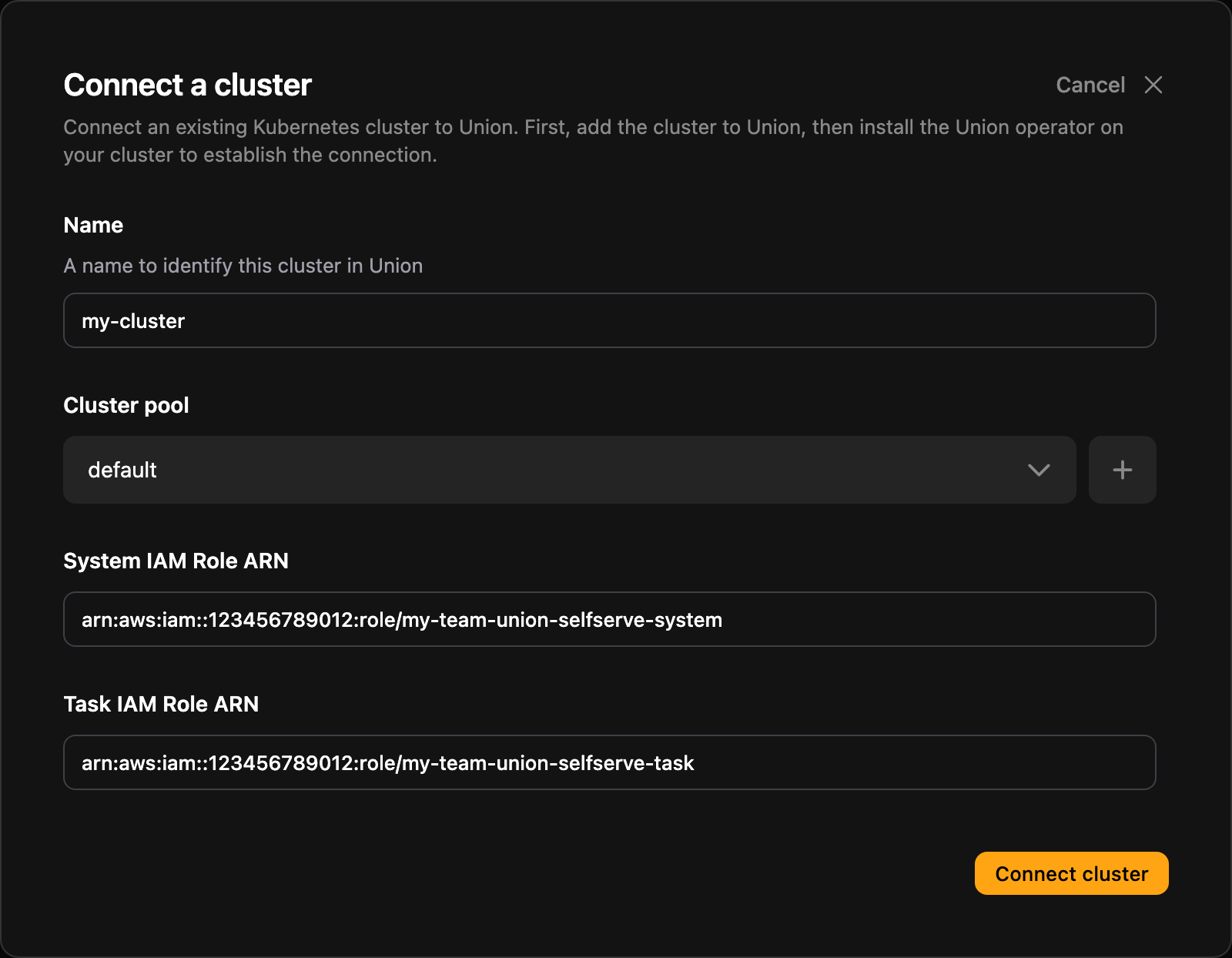

The Connect a cluster dialog with a cluster name, the default pool, and the system and task IAM role ARNs filled in

Select Connect cluster. Union.ai registers the cluster and takes you to its page, where you install the agent. Registering does not put anything on your cluster by itself.

3. Install the agent

The cluster’s page, Install Union on your AWS cluster, shows an install command generated for this cluster. Copy it with Copy install command, and run it in the shell where kubectl can reach the cluster. The agent installs itself and connects out to Union.ai.

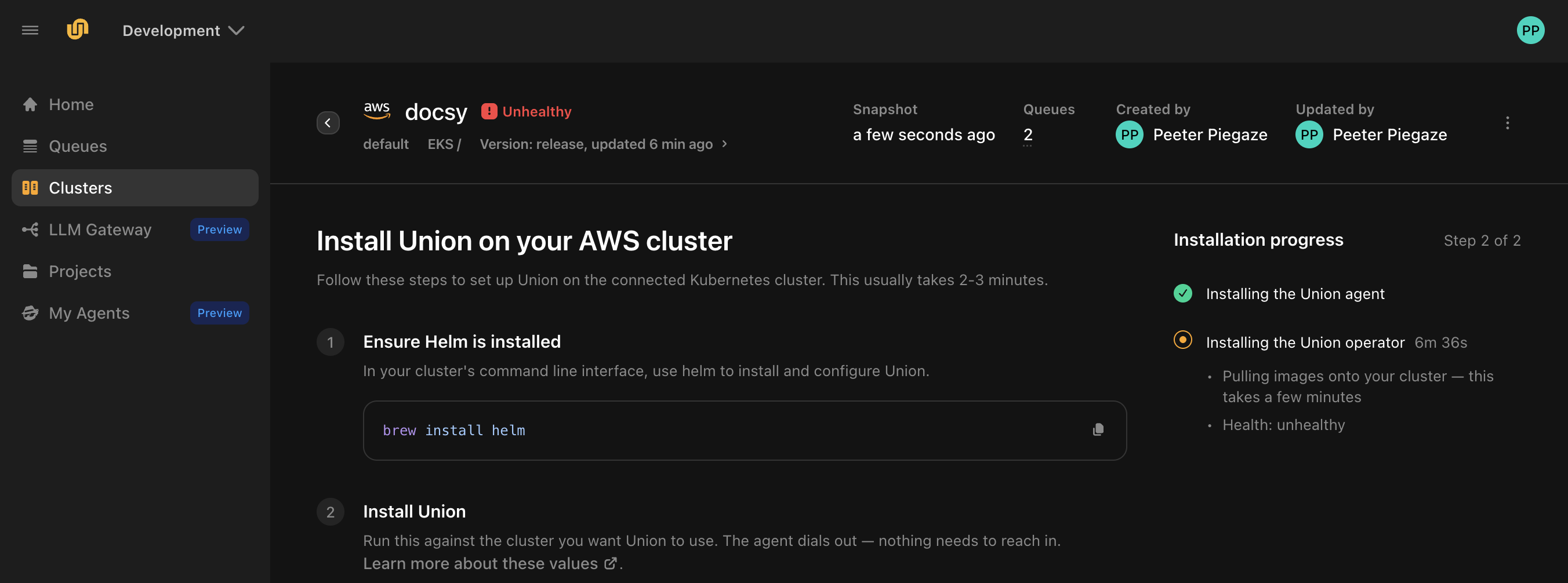

The Install Union on your AWS cluster page, with the Ensure Helm is installed and Install Union steps, and the Installation progress panel showing the agent installed and the Union operator installing

The command writes a values.yaml for your cluster, then installs the agent from it with Helm. In outline, with the generated values left out, it looks like this:



cat <<'UNION_DP_AGENT_VALUES' > values.yaml
# ...the values the UI generated for your cluster...
UNION_DP_AGENT_VALUES

helm upgrade --install dp-agent oci://ghcr.io/omnistrate/dataplane-agent-chart \
  --version <chart-version> \
  --namespace dataplane-agent --create-namespace --values values.yaml \
  --set nameOverride=dp-agent --timeout 10m0s --wait

This outline is only to show you what the command does, and you cannot run it as shown. Use Copy install command to get the real command from the UI, with the values and chart version for your cluster.

The values are a credential

The values.yaml block contains the agent’s client certificate and private key. Treat it like any other secret: do not paste it into a ticket, a chat message, or a shared document, and delete the file once the agent is installed.

4. Wait for the data plane

The Installation progress panel on the cluster’s page tracks two phases:

Phase	What is happening
Installing the Union agent	The agent starts in your cluster and connects out to Union.ai. The panel shows the connection status.
Installing the Union operator	Union.ai installs the data plane through that connection. The panel shows the cluster’s health.

Only the first phase needs you. Once the agent connects, Union.ai installs the data plane itself, so there is nothing more to run. The second phase takes a few minutes on a new cluster, mostly spent pulling images. You can leave the page while it runs and come back to it later. Until it finishes, the cluster shows as Unhealthy at the top of the page. That is expected during the install.

If you check progress with kubectl, list pods across all namespaces. The data plane installs into its own namespace, named instance- followed by an identifier.

When the install finishes, the panel reads Complete, and the cluster shows as Healthy next to its name:

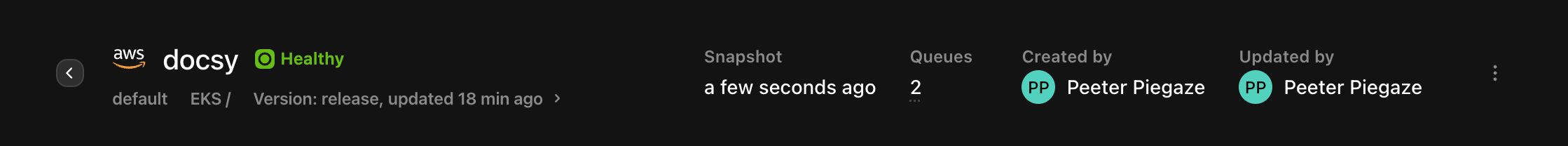

The cluster page header, showing the docsy cluster on AWS with a green Healthy badge

5. Run a workload on the cluster

With a connected cluster, run the hello.py workflow from Run your first workflow locally again, this time without --tracked. The same code now runs on your cluster instead of on your own machine:

flyte run hello.py main

The run appears under Runs in your project, not under Tracked Runs, which is for runs that execute on your own machine. See Run modes for how the two differ.

Next steps

That completes the setup. Union.ai now runs your workloads on your own infrastructure.

To learn how to build workflows with Union.ai, continue with Get started in the user guide.
