OmegaConf

OmegaConf is a hierarchical configuration system used by many ML frameworks (and the foundation of Hydra). The flyteplugins-omegaconf plugin makes OmegaConf’s DictConfig and ListConfig first-class types in Flyte tasks, so you can pass entire configs like plain dicts, YAML files or dataclass-backed structured configs between tasks without flattening them into individual scalar arguments.

The plugin enables:

DictConfig and ListConfig as native task input and output types
Round-tripping of structured configs (dataclass schemas) across task boundaries
Preservation of OmegaConf-specific values: MISSING sentinels, Enums, pathlib.Paths, tuples, and bytes
Resolved variable interpolations on the wire
A YAML-rendered Flyte report tab for human-readable config inspection

Installation

pip install flyteplugins-omegaconf

Installing the package automatically registers DictConfig and ListConfig with Flyte’s TypeEngine. No manual setup is required.

If you are using the Hydra plugin, flyteplugins-omegaconf is installed as a transitive dependency.

Quick start



import flyte
from omegaconf import DictConfig, OmegaConf

env = flyte.TaskEnvironment(name="training", image=...)


@env.task
async def train(cfg: DictConfig) -> float:
    return run_experiment(cfg.optimizer.lr, cfg.training.epochs)


@env.task
async def pipeline() -> float:
    cfg = OmegaConf.create(
        {"optimizer": {"lr": 0.001}, "training": {"epochs": 10}}
    )
    return await train(cfg)

The config is serialized when train is invoked and reconstructed as a DictConfig inside the task. No type registration, manual encoding or schema declaration is required.

When to use this plugin

Use flyteplugins-omegaconf when:

You already use OmegaConf. For example, you have YAML configs, dataclass-based config trees or a Hydra app, and want to keep that representation intact across task boundaries.
You want to pass a single composed config object instead of widening task signatures with dozens of scalar arguments.
You want to enforce schema validation at the task entry point via dataclass-backed structured configs.
You want resolved interpolations (${other.value}) to be materialized at submission time rather than at task runtime.

If you do not use OmegaConf elsewhere, prefer plain dataclasses, pydantic.BaseModel or dict for task inputs as they are supported by Flyte natively without an extra dependency.

Building a DictConfig

Any of the standard OmegaConf construction methods produce a value the plugin can serialize.

From a plain dict



cfg = OmegaConf.create(
    {"optimizer": {"lr": 0.001}, "training": {"epochs": 10}}
)
flyte.run(train, cfg=cfg)

From a YAML file


cfg = OmegaConf.load("configs/training.yaml")
flyte.run(train, cfg=cfg)

The file is read locally on the submitter, not on the worker. If the YAML lives in your project tree and needs to be packaged into the task image, use flyte.with_runcontext(copy_style="all").run(...).

From a dataclass (structured config)



from dataclasses import dataclass

@dataclass
class TrainConf:
    lr: float = 0.001
    epochs: int = 10

cfg = OmegaConf.structured(TrainConf())
flyte.run(train, cfg=cfg)

Structured configs are covered in detail in Structured configs below.

From a base config plus overrides



base = OmegaConf.load("configs/training.yaml")
override = OmegaConf.create({"optimizer": {"lr": 0.01}})
cfg = OmegaConf.merge(base, override)
flyte.run(train, cfg=cfg)

This is the same pattern Hydra uses internally. See the Hydra integration for a full composition layer on top of this plugin.

Variable interpolation

OmegaConf supports ${...} interpolations that resolve relative to the config tree:



cfg = OmegaConf.create(
    {
        "base_lr": 0.01,
        "optimizer": {"lr": "${base_lr}", "momentum": 0.9},
    }
)
flyte.run(train, cfg=cfg)

Interpolations are resolved at serialization time. By the time the task runs, cfg.optimizer.lr is the concrete float 0.01, not the string "${base_lr}". This means:

The receiving task does not need any context that only existed in the submitter’s environment.
Resolved values appear in the Flyte I/O panel.
A reference that fails to resolve at submission time fails fast, before any task runs.

If you need lazy resolution on the worker, resolve the reference yourself inside the task or pass the unresolved string through a normal str input.

Nested and deeply structured configs

Nested configs are supported, including deeply structured OmegaConf objects.



cfg = OmegaConf.create(
    {
        "experiment": {
            "model": {
                "encoder": {
                    "attention": {"num_heads": 8, "head_dim": 64},
                    "ffn": {"hidden_dim": 2048, "activation": "gelu"},
                },
                "decoder": {"num_layers": 6},
            }
        }
    }
)


@env.task
async def extract_leaf(cfg: DictConfig) -> int:
    return int(cfg.experiment.model.encoder.attention.num_heads)

DictConfigs that contain lists

A DictConfig may hold list values; they are reconstructed as nested ListConfigs on the receiving side.



cfg = OmegaConf.create(
    {
        "model": {
            "layer_sizes": [64, 128, 256, 512],
            "activations": ["relu", "relu", "relu", "sigmoid"],
        },
        "data": {
            "augmentations": ["random_flip", "random_crop", "color_jitter"],
            "input_size": [224, 224],
        },
    }
)


@env.task
async def double_layer_sizes(cfg: DictConfig) -> DictConfig:
    doubled = [size * 2 for size in cfg.model.layer_sizes]
    return OmegaConf.merge(cfg, {"model": {"layer_sizes": doubled}})

ListConfig as input and output

ListConfig is symmetric with DictConfig and supports the same construction patterns.

Lists of primitives



@env.task
async def scale_values(values: ListConfig, factor: float) -> ListConfig:
    return OmegaConf.create([v * factor for v in values])

Building a schedule from another task



@env.task
async def build_lr_schedule(base_lr: float, num_stages: int) -> ListConfig:
    return OmegaConf.create([base_lr * (0.5 ** i) for i in range(num_stages)])


@env.task
async def train_with_schedule(cfg: DictConfig, lr_schedule: ListConfig) -> float:
    final_lr = float(lr_schedule[-1])
    ...

Nested lists (list of lists)


grid = OmegaConf.create([[0.001, 0.01, 0.1], [10, 20, 50]])

@env.task
async def flatten_grid(grid: ListConfig) -> ListConfig:
    flat = [item for sublist in OmegaConf.to_container(grid) for item in sublist]
    return OmegaConf.create(flat)

Lists of DictConfigs



configs = OmegaConf.create(
    [
        {"optimizer": {"lr": 0.001}, "training": {"epochs": 10}},
        {"optimizer": {"lr": 0.01},  "training": {"epochs": 20}},
        {"optimizer": {"lr": 0.1},   "training": {"epochs": 5}},
    ]
)


@env.task
async def select_best_config(configs: ListConfig) -> DictConfig:
    best = max(OmegaConf.to_container(configs), key=lambda c: c["optimizer"]["lr"])
    return OmegaConf.create(best)

Lists of dataclass instances



@dataclass
class LayerConf:
    name: str
    width: int
    activation: str


layers = OmegaConf.create(
    [
        LayerConf(name="encoder", width=768, activation="gelu"),
        LayerConf(name="bottleneck", width=128, activation="relu"),
        LayerConf(name="decoder", width=768, activation="linear"),
    ]
)

Each element round-trips as a typed DictConfig backed by LayerConf, so the receiving task can call OmegaConf.get_type(layers[0]) and access fields with attribute notation.

ListConfig is always plain. Even when its elements are dataclass-backed, the outer ListConfig does not carry a list-level schema as there is no structured (typed-element) ListConfig in OmegaConf. This affects only the outer container; nested elements retain their schemas.

Structured configs

A structured config is a DictConfig that is bound to a Python dataclass. The dataclass acts as a schema: assigning a value of the wrong type raises omegaconf.ValidationError, and merging unknown keys raises an error instead of silently extending the config.

Basic structured config



from dataclasses import dataclass, field
from omegaconf import OmegaConf, DictConfig


@dataclass
class OptimizerConf:
    lr: float = 0.001
    weight_decay: float = 1e-4


@dataclass
class TrainConf:
    optimizer: OptimizerConf = field(default_factory=OptimizerConf)
    epochs: int = 10


cfg = OmegaConf.structured(TrainConf())
flyte.run(train, cfg=cfg)

# cfg.optimizer.lr = "oops"  # raises omegaconf.ValidationError

Schema reconstruction in the receiving task

When a structured DictConfig is deserialized in a downstream task, the plugin operates in Auto mode: it reads the originating dataclass name from the wire payload and tries to import it. Two outcomes are possible:

Dataclass importable in the receiving task: cfg is reconstructed as a TrainConf-backed DictConfig. OmegaConf.get_type(cfg) returns TrainConf, and type validation is enforced.
Dataclass not importable: cfg falls back to a plain DictConfig carrying the raw values. OmegaConf.get_type(cfg) returns dict. The values are intact but the schema is lost.

To keep schemas across task hops, define dataclasses in modules that are importable from every task in the pipeline (for example, in a shared configs.py module bundled into the task image).

Required (`MISSING`) fields

OmegaConf’s MISSING sentinel marks a required field that has no default:



from omegaconf import MISSING

@dataclass
class TrainConf:
    data_path: str = MISSING
    epochs: int = 10

# Pass with MISSING still unset — serialization succeeds.
cfg = OmegaConf.structured(TrainConf())
flyte.run(train, cfg=cfg)

# Or fill it before passing.
cfg = OmegaConf.structured(TrainConf(data_path="/data/imagenet"))
flyte.run(train, cfg=cfg)

A config with an unset MISSING field serializes and deserializes successfully as the sentinel is preserved on the wire. Accessing the field on the receiving side raises MissingMandatoryValue.

Type annotations are preserved only in Auto mode. When the dataclass is importable on the receiving side, an unfilled MISSING field still carries its declared type (e.g. StringNode for str). When the plugin falls back to a plain DictConfig because the dataclass is not importable, the field becomes an AnyNode where the value is preserved, but the type annotation is not.

Advanced field types

Beyond primitives and nested dataclasses, structured configs may declare fields of these types and they will round-trip with their schemas intact:

Enum subclasses
pathlib.Path
Optional[T]
bytes
dict[str, T] where T is a dataclass
list[T] where T is a dataclass



from enum import Enum
from pathlib import Path
from typing import Optional


class RunMode(Enum):
    TRAIN = "train"
    EVAL = "eval"


@dataclass
class CallbackConf:
    name: str = "early_stop"
    patience: int = 3
    monitor: str = MISSING


@dataclass
class AdvancedTrainConf:
    mode: RunMode = RunMode.TRAIN
    checkpoint_dir: Path = Path("/tmp/checkpoints")
    maybe_seed: Optional[int] = None
    payload: bytes = b"default-token"
    callbacks_by_name: dict[str, CallbackConf] = field(
        default_factory=lambda: {
            "early_stop": CallbackConf(name="early_stop", patience=3),
            "checkpoint": CallbackConf(name="checkpoint", monitor="val_loss"),
        }
    )
    callbacks: list[CallbackConf] = field(
        default_factory=lambda: [
            CallbackConf(name="lr_monitor", patience=2, monitor="lr"),
            CallbackConf(name="nan_guard", patience=1, monitor="loss"),
        ]
    )

Inside a downstream task:



@env.task
async def inspect(cfg: DictConfig) -> str:
    assert OmegaConf.get_type(cfg) == AdvancedTrainConf
    assert OmegaConf.get_type(cfg.callbacks[0]) == CallbackConf
    assert isinstance(cfg.mode, RunMode)
    assert isinstance(cfg.checkpoint_dir, Path)
    assert isinstance(cfg.payload, bytes)
    return cfg.mode.value

Merging overrides on top of a structured base



@env.task
async def structured_merge_pipeline() -> str:
    base = OmegaConf.structured(TrainConf())
    overrides = OmegaConf.create(
        {
            "optimizer": {"lr": 0.05},
            "training": {"epochs": 100},
            "experiment_name": "sweep-run-1",
        }
    )
    cfg = OmegaConf.merge(base, overrides)
    return await validate_config(cfg)

Merging an unknown key against a structured config raises an error, so define every key the override layer might supply on the dataclass.

Embedding rich Python values inside a plain DictConfig

A plain DictConfig (one not bound to a dataclass) can still hold Python values that OmegaConf does not natively model. The plugin preserves the following types end-to-end whether they appear in plain or structured configs:

pathlib.Path and any subclass of pathlib.PurePath
enum.Enum members
tuple (round-trips as tuple, not list)
bytes


cfg = OmegaConf.create({"model_path": Path("/opt/models/model.bin")})

@env.task
async def use_path(cfg: DictConfig) -> str:
    assert isinstance(cfg.model_path, Path)
    return f"model_path={cfg.model_path}"

If an Enum’s class cannot be imported in the receiving environment, the value is returned as the underlying primitive (int, str, …) instead of the enum member.

Reserved-looking keys

The plugin’s wire format uses an internal payload marker (__flyte_omegaconf__), which means user-facing keys named kind, values, name, value, type, or schema round-trip unchanged:



cfg = OmegaConf.create({"kind": "training-job", "values": {"lr": 0.001}})


@env.task
async def use_payload_shaped_config(cfg: DictConfig) -> str:
    # cfg.values resolves to DictConfig.values() — use bracket notation
    # to reach the user key named "values".
    return f"kind={cfg.kind} lr={cfg['values'].lr}"

The only practical consideration is Python’s normal attribute-vs-method conflict: cfg.values is the .values() method, so reach for cfg["values"] when your config has a key with that name.

YAML reports

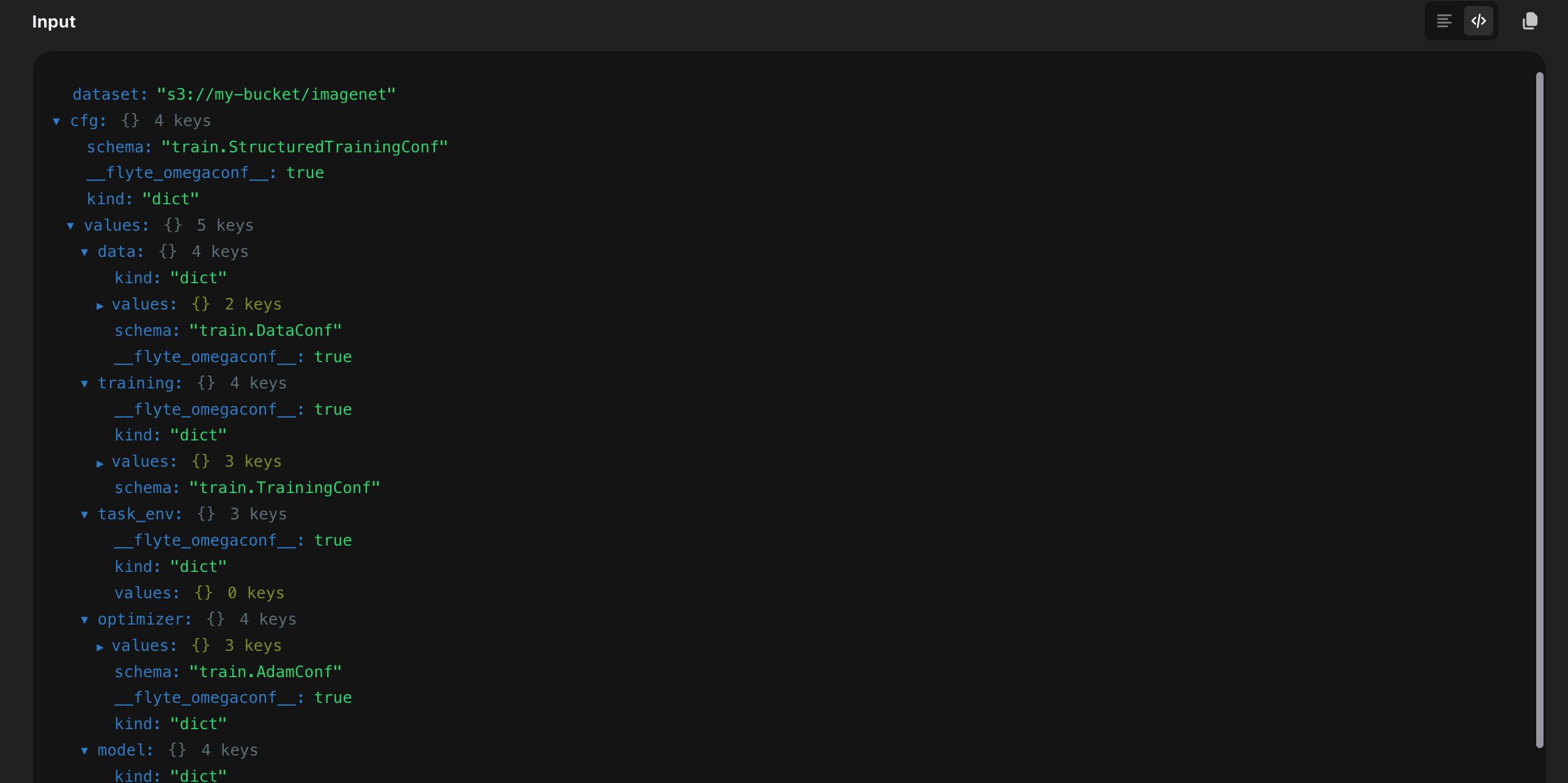

The Flyte I/O panel displays the literal wire representation of a DictConfig.

Wire Representation

For a YAML view, enable a Flyte report on the task and log the config with log_yaml:


from flyteplugins.omegaconf import log_yaml

@env.task(report=True)
async def train(cfg: DictConfig) -> DictConfig:
    await log_yaml.aio(cfg, title="Input config")
    ...

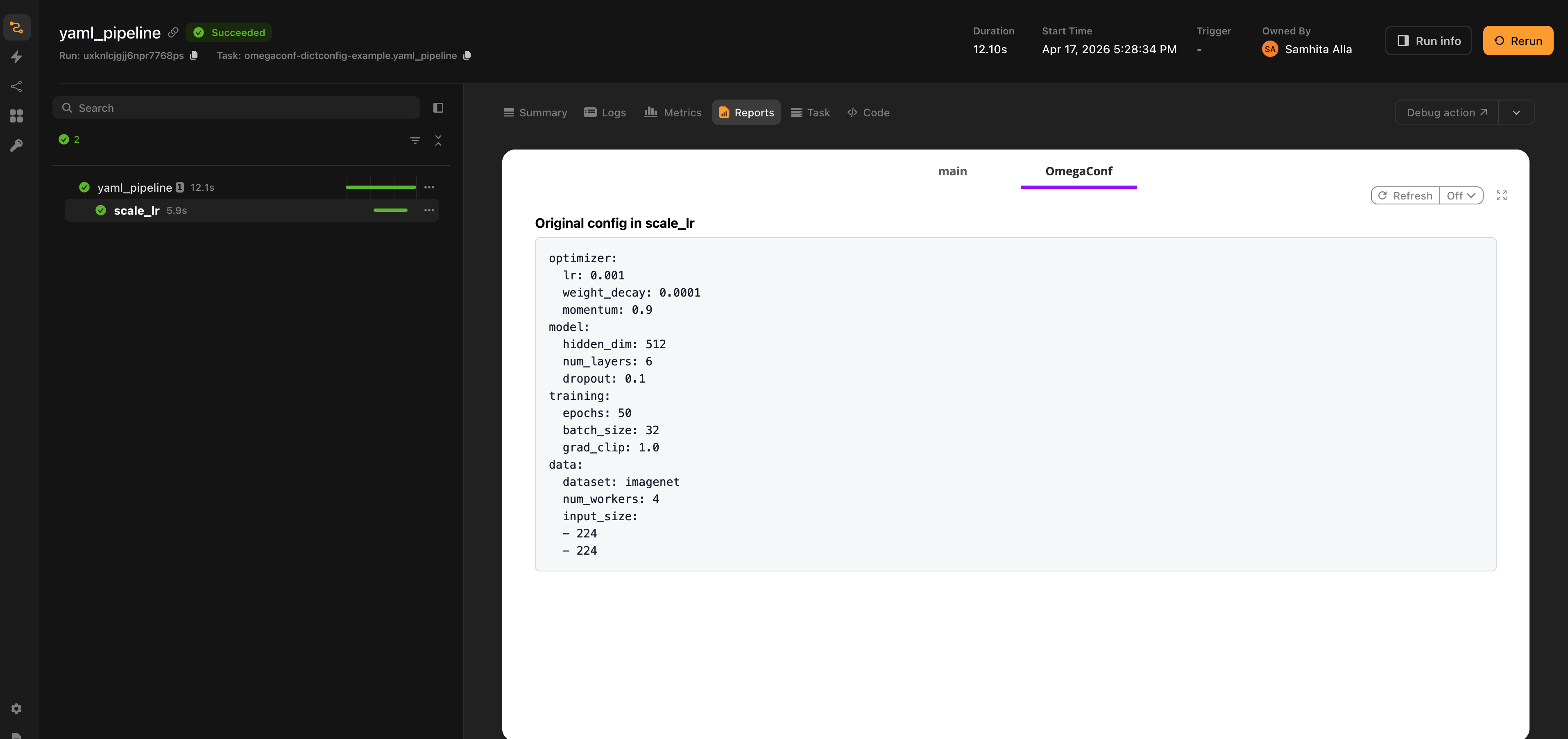

YAML Report

The plugin also exposes:

to_yaml(cfg): render an OmegaConf container as a YAML string.
to_html(cfg, title=...): wrap the YAML in escaped HTML for embedding in a custom report.
replace_yaml(cfg, ...): replace the contents of a report tab instead of appending.


from flyteplugins.omegaconf.report import to_yaml, replace_yaml

text = to_yaml(cfg)
await replace_yaml.aio(cfg, tab="Final config")

MISSING fields appear as ??? in the YAML output, matching OmegaConf’s own convention.

Wire format

Both DictConfig and ListConfig are serialized as MessagePack blobs with the literal representation:

Literal(scalar=Scalar(binary=Binary(value=<msgpack bytes>, tag="msgpack")))

The msgpack payload uses an internal tagged structure to distinguish OmegaConf-specific concepts from raw values:

A DictConfig payload includes the originating dataclass name (builtins.dict for plain configs) plus its values.
MISSING, Enum, Path, and tuple values carry tagged shapes so they can be reconstructed faithfully.

You normally do not need to inspect this format. It is documented here because:

The plugin serializes with resolve=True, so the wire representation always contains concrete values for ${...} interpolations.
Cache-key metadata is set via Flyte’s MESSAGEPACK serialization format, so two tasks given equivalent configs hit the same cache entry.

End-to-end example

The example below ties the pieces together: a structured DictConfig is created in a parent task, flows through several child tasks that read and modify it, and a ListConfig produced midway is consumed by a later stage. Each hop serializes and deserializes the config; the dataclass schema is recovered on the receiving side because TrainConf (and friends) are importable in every task in the pipeline.

example.py






from dataclasses import dataclass, field

import flyte
from omegaconf import DictConfig, ListConfig, OmegaConf

env = flyte.TaskEnvironment(
    name="omegaconf-pipeline-example",
    image=flyte.Image.from_debian_base().with_pip_packages("flyteplugins-omegaconf"),
)


@dataclass
class OptimizerConf:
    lr: float = 0.001
    weight_decay: float = 1e-4


@dataclass
class DataConf:
    path: str = ""
    preprocessed: bool = False


@dataclass
class ResultsConf:
    val_loss: float = 0.0
    final_lr: float = 0.0
    num_lr_steps: int = 0


@dataclass
class TrainConf:
    optimizer: OptimizerConf = field(default_factory=OptimizerConf)
    data: DataConf = field(default_factory=DataConf)
    results: ResultsConf = field(default_factory=ResultsConf)
    epochs: int = 10
    batch_size: int = 32
    experiment: str = "baseline"


@env.task
async def preprocess(cfg: DictConfig, dataset: str) -> DictConfig:
    """First stage: fills in the data section of cfg."""
    return OmegaConf.merge(cfg, {"data": {"path": dataset, "preprocessed": True}})


@env.task
async def build_schedule(cfg: DictConfig) -> ListConfig:
    """Produces an LR schedule from cfg as a ListConfig."""
    lrs = [cfg.optimizer.lr * (0.5**i) for i in range(cfg.epochs)]
    return OmegaConf.create(lrs)


@env.task
async def train(cfg: DictConfig, lr_schedule: ListConfig) -> tuple[DictConfig, float]:
    """Simulates training. Returns the final cfg (with results filled in) and val loss."""
    final_lr = float(lr_schedule[-1])
    val_loss = final_lr * 10  # placeholder
    result_cfg = OmegaConf.merge(
        cfg,
        {
            "results": {
                "val_loss": val_loss,
                "final_lr": final_lr,
                "num_lr_steps": len(lr_schedule),
            }
        },
    )
    return result_cfg, val_loss


@env.task
async def evaluate(result_cfg: DictConfig, val_loss: float) -> str:
    """Final stage: formats a report from the result config."""
    return (
        f"experiment={result_cfg.experiment} "
        f"data={result_cfg.data.path} "
        f"val_loss={val_loss:.6f} "
        f"final_lr={result_cfg.results.final_lr:.6f} "
        f"lr_steps={result_cfg.results.num_lr_steps}"
    )


@env.task
async def training_pipeline(dataset: str) -> str:
    """Full pipeline: cfg flows preprocess, build_schedule, train and evaluate."""
    cfg = OmegaConf.structured(
        TrainConf(
            optimizer=OptimizerConf(lr=0.01, weight_decay=1e-5),
            epochs=5,
            batch_size=64,
            experiment="structured-cfg-pipeline",
        )
    )

    preprocessed_cfg = await preprocess(cfg, dataset=dataset)
    lr_schedule = await build_schedule(preprocessed_cfg)
    result_cfg, val_loss = await train(preprocessed_cfg, lr_schedule=lr_schedule)
    return await evaluate(result_cfg, val_loss=val_loss)


if __name__ == "__main__":
    flyte.init_from_config()
    run = flyte.run(training_pipeline, dataset="s3://my-bucket/imagenet")
    print(f"Run URL: {run.url}")
    print(f"Outputs: {run.outputs()}")

For more focused examples such as plain DictConfig patterns, advanced ListConfig shapes, all MISSING/Enum/Path/bytes cases, see the plugin repository.
