NVIDIA Nsight Systems

The Nsight plugin runs a Flyte task under NVIDIA Nsight Systems (nsys). Add the [[flyteplugins.nsight.nsys_profile|@nsys_profile]] decorator to a task and each run gives you two things:

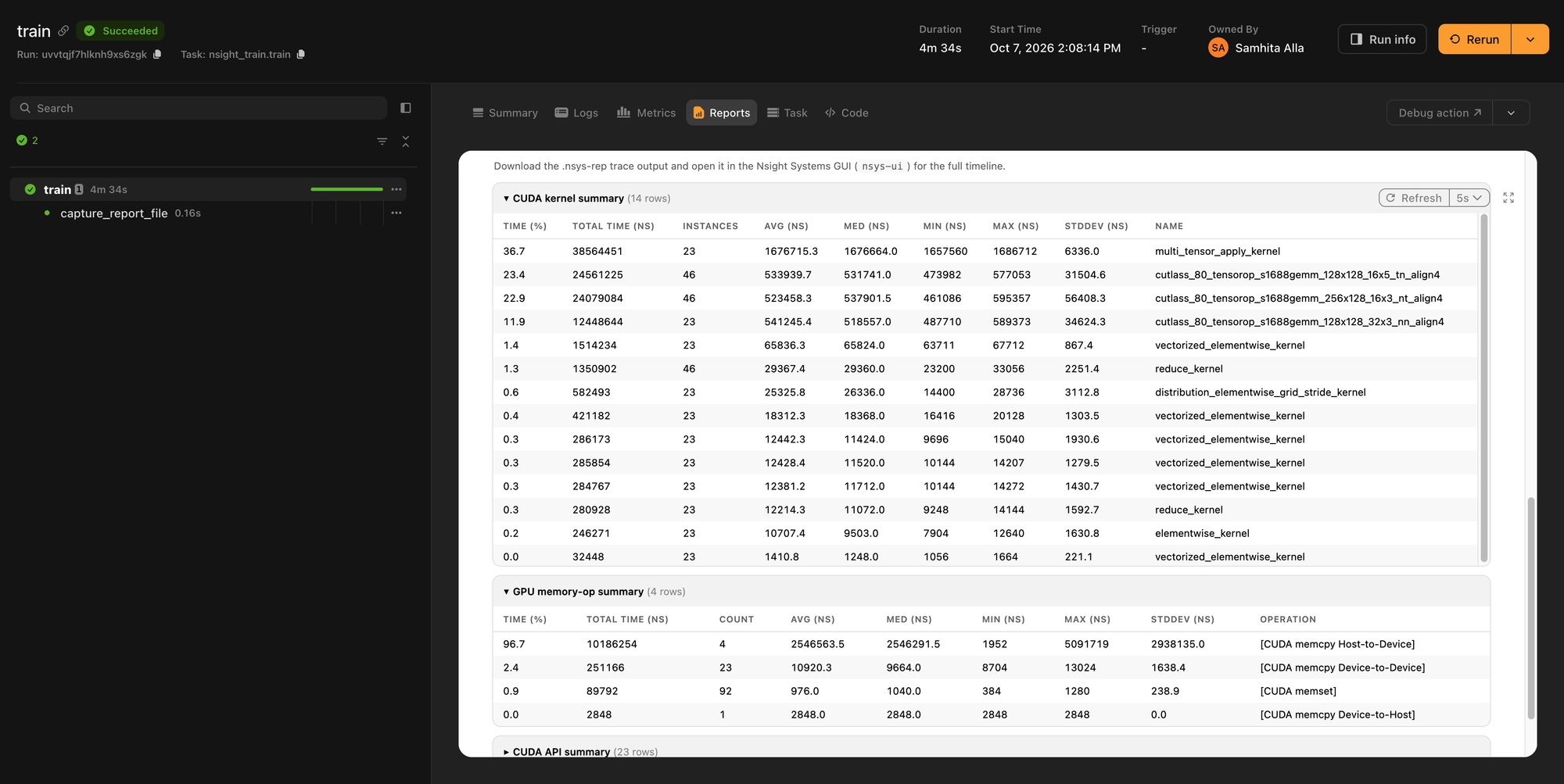

• A GPU Profile tab in the task’s report, with summary metrics, the most expensive CUDA kernels, a breakdown of your NVTX ranges, and detail tables from nsys stats.
• The raw .nsys-rep trace, which you can download and open in the Nsight Systems GUI to see the full timeline.

The decorator doesn’t change the task’s signature or body. To keep it in your code and switch profiling on only for some runs, see Turning profiling off.

Installation

Install the plugin from the flyte-sdk repository:

pip install "flyteplugins-nsight @ git+https://github.com/flyteorg/flyte-sdk@6d3d72b8198d0444ad0471836ca118d32344b268#subdirectory=plugins/nsight"

The plugin requires flyte 2.5.10 or later. The task image needs the nsys CLI on its PATH, or the task fails at startup. The NGC PyTorch images include it.

Quick start

Define an image that has nsys, torch, and the plugin:

import flyte
from flyteplugins.nsight import nsys_profile, nvtx

image = (
    flyte.Image.from_base("nvcr.io/nvidia/pytorch:26.09-py3")
    # python_version must match the base image's Python (3.12 in NGC 26.xx images).
    .clone(extendable=True, name="nsight", python_version=(3, 12))
    .with_pip_packages(
        "flyte",
        "flyteplugins-nsight @ git+https://github.com/flyteorg/flyte-sdk@6d3d72b8198d0444ad0471836ca118d32344b268#subdirectory=plugins/nsight",
    )
    # NGC installs torch into the system Python, but Flyte runs tasks in /opt/venv.
    # Let that venv see system site-packages so `import torch` resolves to NGC's build.
    .with_commands(
        ["sed -i 's/include-system-site-packages = false/include-system-site-packages = true/' /opt/venv/pyvenv.cfg"]
    )
)

Give the task a GPU:

env = flyte.TaskEnvironment(
    name="nsight_train",
    image=image,
    resources=flyte.Resources(cpu="4", memory="16Gi", gpu="L4:1"),
)

Then add @nsys_profile above @env.task. The [[flyteplugins.nsight.nvtx.range|nvtx.range]] labels are optional, but they make the timeline and the report easier to read:

@nsys_profile
@env.task
async def train(steps: int = 20) -> float:
    import torch
    import torch.nn as nn

    model = nn.Sequential(nn.Linear(4096, 4096), nn.ReLU(), nn.Linear(4096, 4096)).cuda()
    opt = torch.optim.SGD(model.parameters(), lr=1e-3)

    def step() -> torch.Tensor:
        loss = model(torch.randn(512, 4096, device="cuda")).pow(2).mean()
        opt.zero_grad(set_to_none=True)
        loss.backward()
        opt.step()
        return loss

    # Unlabeled warmup keeps one-time CUDA startup costs out of the NVTX summary.
    for _ in range(3):
        step()
    torch.cuda.synchronize()

    for i in range(steps):
        with nvtx.range(f"step_{i}"):
            loss = step()

    torch.cuda.synchronize()
    return loss.item()

Run it like any other task:

if __name__ == "__main__":
    flyte.init_from_config()
    run = flyte.run(train)
    print(run.url)

@nsys_profile must be the outermost decorator, above @env.task. Placed anywhere else, it raises TypeError when the module is imported.

The decorator also turns on the task’s report, so you don’t need report=True.

Reading the profile

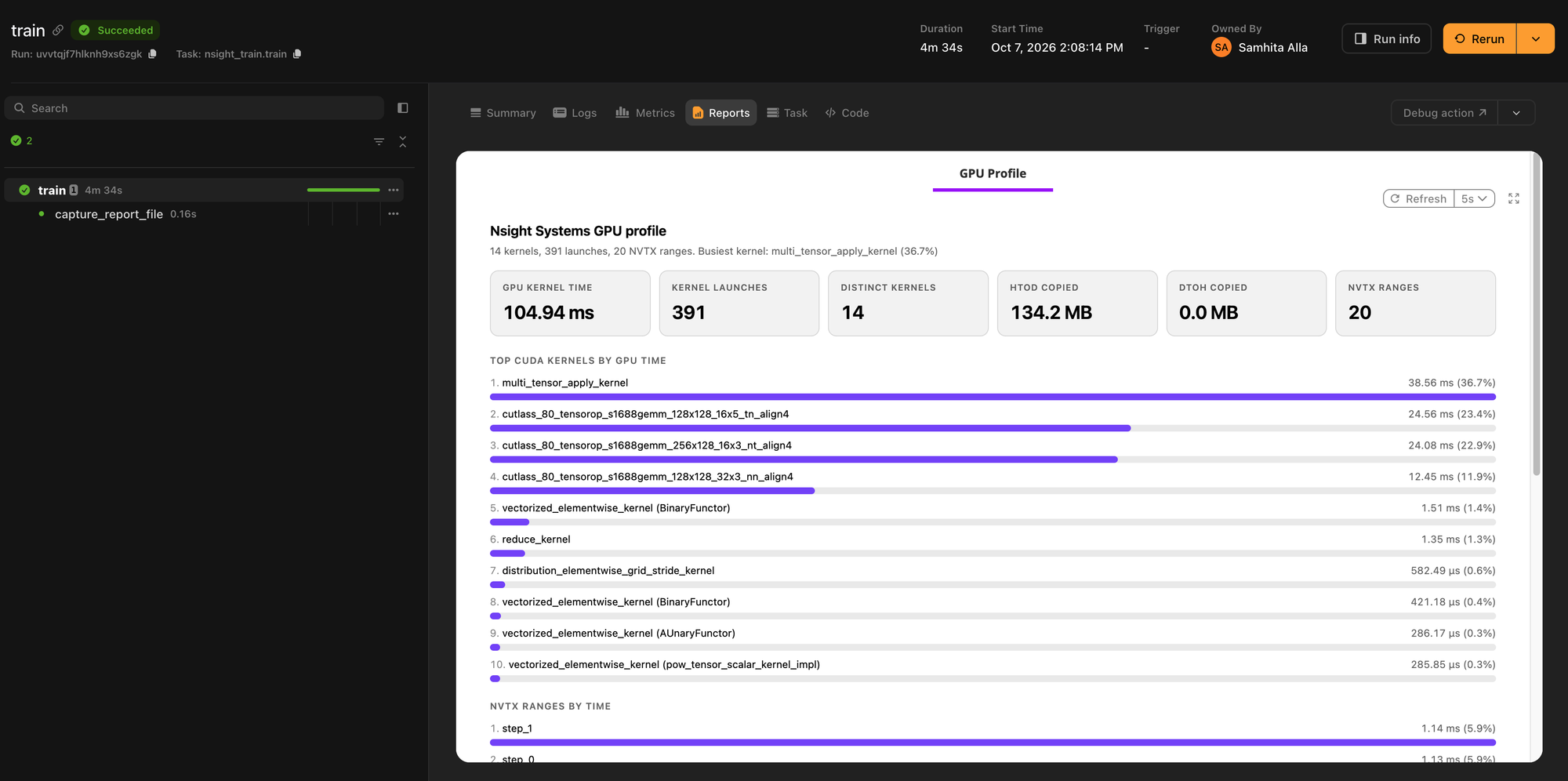

Open the run, select the task, and go to Reports → GPU Profile. The tab shows:

The .nsys-rep file is attached to the run as the output of a traced step named capture_report_file, or capture_report_file_sync for an nsys.range block in a synchronous task. Download it from that step’s outputs in the UI and open it in nsys-ui, the Nsight Systems desktop app, to inspect the timeline. It shows kernel overlap, CPU-side stalls, memory copies, and synchronization gaps that the summary tables don’t.

Profiling part of a task

A long task profiled end to end can produce a trace of several gigabytes. Its first steps also include one-time startup work, such as CUDA context creation, cuDNN autotuning, and module loading. To profile only the code you’re investigating, set capture="manual" and wrap that code in [[flyteplugins.nsight.nsys.range|nsys.range]]:

@nsys_profile(capture="manual", trace=["cuda", "nvtx"])
@env.task
async def train_regions(steps: int = 30) -> float:
    import torch

    model, opt = build_model()
    for _ in range(3):  # warmup, not profiled
        train_step(model, opt)
    torch.cuda.synchronize()

    async with nsys.range("training"):
        for i in range(steps):
            with nvtx.range(f"step_{i}"):
                loss = train_step(model, opt)
        torch.cuda.synchronize()

    async with nsys.range("evaluation"):
        evaluate(model)
        torch.cuda.synchronize()

    return loss.item()

build_model, train_step, and evaluate are ordinary PyTorch helpers, defined in the full example file.

With capture="manual" the task starts under nsys, but nothing is recorded until execution enters an nsys.range block. Each block is collected separately. It produces its own .nsys-rep and its own section in the GPU Profile tab, titled Nsight region: <name>, so the training and evaluation regions in this example get separate traces. A block that runs several times, for example inside a loop, produces a section and a trace each time it runs.

Write the block to match the task function:

• In an async def task, use async with nsys.range(...).
• In a plain def task, use with nsys.range(...). The decorator profiles synchronous tasks too:

@nsys_profile(capture="manual", trace=["cuda", "nvtx"])
@env.task
def train_regions_sync(steps: int = 30) -> float:
    import torch

    model, opt = build_model()
    for _ in range(3):
        train_step(model, opt)
    torch.cuda.synchronize()

    with nsys.range("training"):
        for i in range(steps):
            with nvtx.range(f"step_{i}"):
                loss = train_step(model, opt)
        torch.cuda.synchronize()

    return loss.item()

Don’t confuse nsys.range with nvtx.range. nsys.range starts and stops a recording, and nvtx.range only labels code inside one. Use nsys.range only with capture="manual", and don’t nest one inside another. Otherwise the block tries to start a second recording while one is running. It retries for about seven seconds, then logs could not start collection. Its code is still recorded by the running collection, but it gets no section or trace of its own.

Labeling the timeline with NVTX

nvtx.range marks a block of code as a named span on the Nsight timeline and in the NVTX section of the report. [[flyteplugins.nsight.nvtx.mark|nvtx.mark]] records a single point in time:

from flyteplugins.nsight import nvtx

with nvtx.range("forward"):
    out = model(x)

nvtx.mark("checkpoint saved")

Both are thin wrappers over torch.cuda.nvtx. When torch isn’t installed, or is a CPU-only build, they do nothing, so annotated code still runs on a laptop or in a CPU-only test.

Label the phases you’ll want to find on the timeline, such as data loading, the forward and backward passes, and the optimizer step. Unlabeled, the timeline shows only kernels and API calls.

Choosing what to trace

trace selects the nsys trace domains. The default, ("cuda", "nvtx"), covers most GPU work and needs no extra permissions.

nsys accepts other domains as well; the plugin passes trace through unchanged. See the Nsight Systems user guide for the full list.

sample sets CPU sampling, passed to nsys --sample. For example, sample="cpu" adds CPU call stacks to the trace and sample="none" turns sampling off. When omitted, nsys uses its own default.

reports lists the nsys stats reports the plugin runs. The default is flyteplugins.nsight.DEFAULT_REPORTS: cuda_gpu_kern_sum, cuda_gpu_mem_time_sum, cuda_gpu_mem_size_sum, cuda_api_sum, and nvtx_pushpop_sum. The GPU Profile tab only renders these five, so use reports to drop one, not to add others. A report that your nsys version doesn’t support, or that has no rows, is skipped.

If you only want the report and not the trace file, set attach_report=False.

Profiling distributed training

@nsys_profile works on tasks in a clustered task environment that uses the default TorchRun runtime. Only the global primary worker, RANK 0, runs under nsys. Every other rank runs normally.

env = ClusteredTaskEnvironment(
    name="nsight_ddp",
    image=image,
    resources=flyte.Resources(cpu="8", memory="32Gi", gpu="T4:2"),
    replicas=2,  # two pods
    nproc_per_node=2,  # one process per GPU, four ranks in total
)

@nsys_profile(trace=["cuda", "nvtx"])
@env.task
async def train_ddp(steps: int = 30) -> str:
    import os

    import torch
    import torch.distributed as dist
    import torch.nn as nn
    from torch.nn.parallel import DistributedDataParallel as DDP

    dist.init_process_group("nccl")
    local_rank = int(os.environ["LOCAL_RANK"])
    torch.cuda.set_device(local_rank)

    model = DDP(nn.Linear(4096, 4096).cuda(), device_ids=[local_rank])
    opt = torch.optim.SGD(model.parameters(), lr=1e-3)

    for i in range(steps):
        with nvtx.range(f"step_{i}"):
            loss = model(torch.randn(512, 4096, device="cuda")).pow(2).mean()
            opt.zero_grad(set_to_none=True)
            loss.backward()  # DDP all-reduces gradients here
            opt.step()
    torch.cuda.synchronize()

    rank = dist.get_rank()
    dist.destroy_process_group()
    return f"rank {rank} done, loss {loss.item():.4f}"

In data-parallel training, rank 0 does the same work as the others, and its timeline includes the NCCL all-reduce in the backward pass.

The trace isn’t attached as a run output for a clustered task. The plugin uploads the .nsys-rep to the task’s raw data path instead, and prints its location in the GPU Profile tab, below the charts. To download it, pass that location to File.from_existing_remote:

import flyte
from flyte.io import File

flyte.init_from_config()
# Replace with the location shown in the GPU Profile tab.
File.from_existing_remote("<trace-location>").download_sync("rank0.nsys-rep")

Turning profiling off

Running under nsys adds overhead. To keep the decorator in your code but skip profiling, set enabled=False. The decorator then returns the task unchanged.

enabled is evaluated each time the module is imported: on your machine when you run flyte run or flyte deploy, and again in the task container. Both must get the same value. If you drive it from an environment variable, pass that variable to the task as well:

import os

import flyte
from flyteplugins.nsight import nsys_profile

PROFILE_GPU = os.getenv("PROFILE_GPU", "0")

env = flyte.TaskEnvironment(
    name="train",
    image=image,  # the image from the quick start
    resources=flyte.Resources(gpu="L4:1"),
    env_vars={"PROFILE_GPU": PROFILE_GPU},
)


@nsys_profile(enabled=PROFILE_GPU == "1")
@env.task
async def train() -> float: ...

PROFILE_GPU=1 flyte run train.py train

With flyte deploy, the value in your shell at deploy time applies to every run of that deployed version.

Profiling also switches itself off when it can’t run:

• In a local run, the task runs unprofiled and nsys.range blocks do nothing.
• If nsys start fails, the plugin logs a warning and runs the task unprofiled.

Profiling errors never fail the task. If the task body raises an exception, the plugin stops collection, renders the report, and uploads the trace before the exception propagates, so a failed run has a profile too.

Permissions

The osrt trace domain needs CAP_SYS_ADMIN and an unconfined AppArmor profile. Without them, nsys reports a permission error such as insufficient privileges in the task logs, or the trace has no OS runtime data.

Grant both with pod_template=flyte.PodTemplate().allow_nested_sandboxing(). It imports the kubernetes package, so add that to the task image and to your local environment:

image = image.with_pip_packages("kubernetes")  # the image from the quick start

env = flyte.TaskEnvironment(
    name="train",
    image=image,
    resources=flyte.Resources(cpu="4", memory="16Gi", gpu="L4:1"),
    pod_template=flyte.PodTemplate().allow_nested_sandboxing(),
)


@nsys_profile(trace=["cuda", "nvtx", "osrt"])
@env.task
async def train() -> float: ...

allow_nested_sandboxing() adds CAP_SYS_ADMIN and an unconfined AppArmor profile, sets allowPrivilegeEscalation: false, and doesn’t make the container privileged. See Pod templates for how pod templates work.

If your cluster doesn’t allow that capability, leave osrt out of trace and drop the pod template. The cuda, nvtx, cudnn, and cublas domains need no extra permissions.

If nsys reports ERR_NVGPUCTRPERM, the GPU driver restricts profiling to administrators. A cluster administrator can lift that by setting the NVIDIA driver option NVreg_RestrictProfilingToAdminUsers=0 on the GPU nodes.

Troubleshooting

How it works

@nsys_profile adds environment variables to the task’s container. When the Flyte runtime starts the action, it reads them and re-executes the whole process under nsys launch, which opens a profiling session that doesn’t record yet. Inside the task, the plugin runs nsys start before the profiled code and nsys stop after it, around the whole body for capture="task" or around each nsys.range block for capture="manual". nsys stop writes the .nsys-rep to disk while the task keeps running. The plugin then summarizes the trace with nsys stats, renders the GPU Profile tab, and uploads the trace file.

Reference

[[flyteplugins.nsight.nsys_profile|nsys_profile]] parameters:

Other public names in flyteplugins.nsight:

See the Nsight API reference for full signatures.
