Reports

The reports feature allows you to display and update custom output in the UI during task execution.

First, you set the report=True flag in the task decorator. This enables the reporting feature for that task. Within a task with reporting enabled, a flyte.report.Report object is created automatically.

A Report object contains one or more tabs, each of which contains HTML. You can write HTML to an existing tab and create new tabs to organize your content. Initially, the Report object has one tab (the default tab) with no content.

To write content:

To get or create a new tab:

  • flyte.report.get_tab() allows you to specify a unique name for the tab, and it will return the existing tab if it already exists or create a new one if it doesn’t. It returns a flyte.report._report.Tab

You can log() or replace() HTML on the Tab object just as you can directly on the Report object.

Finally, you send the report to the Flyte server and make it visible in the UI:

  • flyte.report.flush() dispatches the report. It is important to call this method to ensure that the report is sent.

Here is an example of how to use the reporting feature in a task:

import flyte
import flyte.report

env = flyte.TaskEnvironment("name")


@env.task(report=True)
async def task1():
    await flyte.report.replace.aio("<p>The quick, brown fox jumps over a lazy dog.</p>")
    tab2 = flyte.report.get_tab("Tab 2")
    tab2.log.aio("<p>The quick, brown dog jumps over a lazy fox.</p>")
    await flyte.report.flush.aio()


if __name__ == "__main__":
    flyte.init_from_config("config.yaml")
    r = flyte.run(task1)
    print(r.name)
    print(r.url)

Here we define a task task1 that logs some HTML content to the default tab and creates a new tab named “Tab 2” where it logs additional HTML content. The flush method is called to sent the report to the backend.

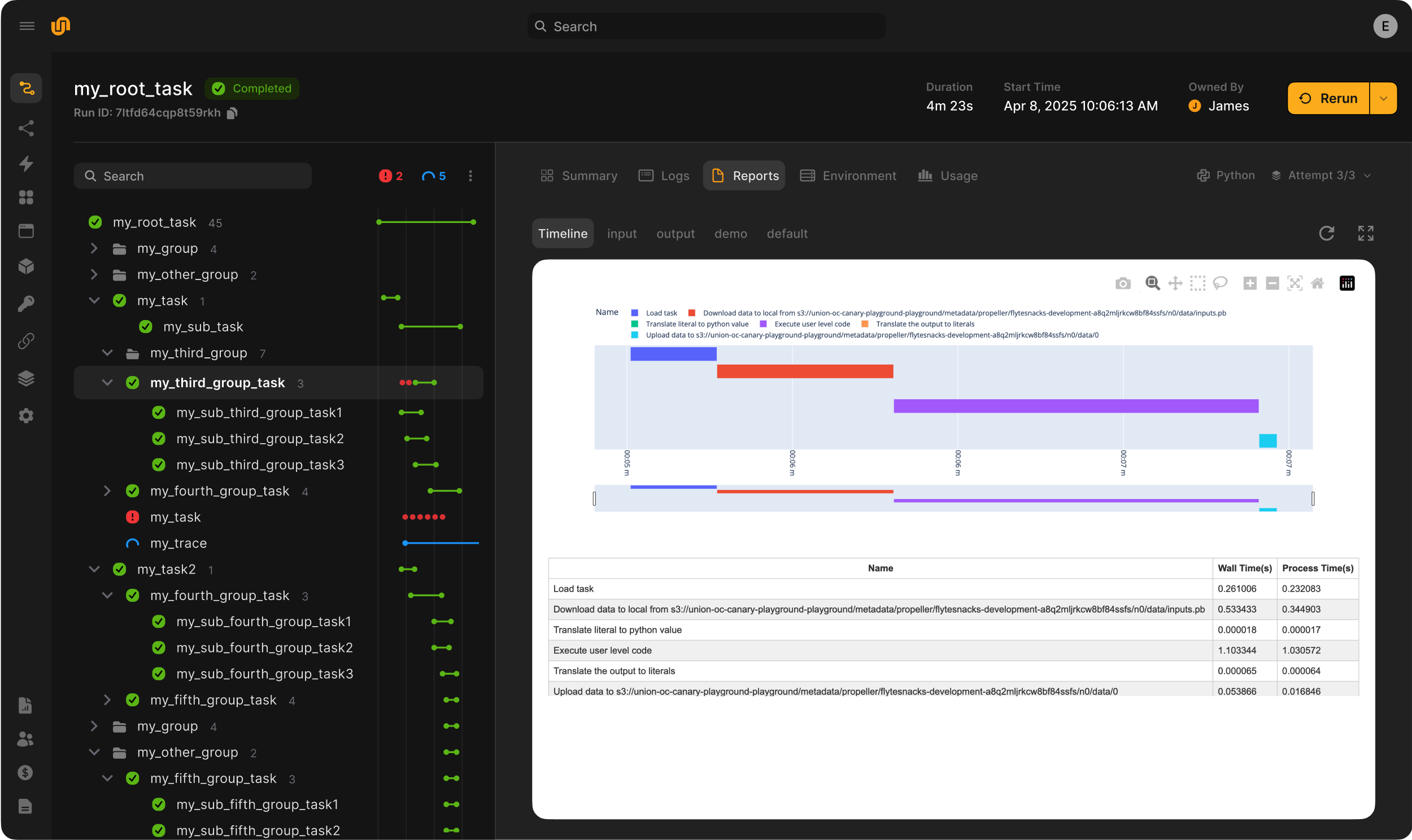

When the task is run, the report will be visible in the Flyte UI under the task execution details:

Reports
