Multi-cluster

The multi-cluster deployment described in this section assumes that you have deployed the flyte-core helm chart, which runs the individual flyte components separately. This is needed because in a multi-cluster setup, the execution engine (flytepropeller) is deployed to multiple k8s clusters; hence it wouldn’t work with the flyte-binary helm chart, since it deploys all flyte services as one single binary.

Union.ai offers simplified support for multi-cluster and multi-cloud. Learn more or book a demo.

Scaling Beyond Kubernetes

As described in the Architecture Overview, the Flyte control plane (flyteadmin) sends workflows off to the Data Plane (flytepropeller) for execution. The data plane fulfills these workflows by launching pods in Kubernetes.

The case for multiple Kubernetes clusters may arise due to security constraints, cost-effectiveness or a need to scale out computing resources.

To address this, you can deploy Flyte’s data plane to multiple Kubernetes clusters. The control plane (flyteadmin) can be configured to submit workflows to these individual data planes. Additionally, Flyte provides the mechanisms for administrators to retain control on the workflow placement logic while enabling users to reap the benefits using simple abstractions like projects and domains.

Prerequisites

To make sure that your multi-cluster deployment is able to scale and process requests successfully, the following environment-specific requirements should be met:

  1. An IAM Policy that defines the permissions needed for Flyte. A minimum set of permissions include:

    "Action": [
   "s3:DeleteObject*",
   "s3:GetObject*",
   "s3:ListBucket",
   "s3:PutObject*"
],
"Resource": [
   "arn:aws:s3:::<your-S3-bucket>*",
   "arn:aws:s3:::<your-S3-bucket>*/*"
],

  2. Two IAM Roles configured: one for the control plane components, and another for the data plane where the worker Pods and flytepropeller run. Use the recommended security strategy for the cloud provider you’re running on. For example, IRSA for EKS environments or Workload Identity Federation for GCP.

  3. Mapping between the default Service Account in each project-domain namespace and the assumed role in your cloud environment. By default, every Pod created for a Task execution, uses the default Service Account in their respective namespace. In your cluster, you’ll have as many namespaces as project and domain combinations you may have.

Data Plane Deployment

This guide assumes that you have two Kubernetes clusters and that you can access them all with kubectl.

Let’s call these clusters dataplane1 and dataplane2. In this section, you’ll prepare the first cluster only.

  1. Add the flyteorg Helm repo:

    $ helm repo add flyteorg https://flyteorg.github.io/flyte
$ helm repo update

  2. Get the flyte-core Helm chart:

    $ helm fetch --untar --untardir . flyteorg/flyte-core
$ cd flyte-core

  3. Open the values-dataplane.yaml file and add the following contents:

    configmap:
  admin:
    admin:
      endpoint: <your-Ingress-FQDN>:443 #indicate the URL you're using to connect to Flyte
      insecure: false #enables secure communication over SSL. Requires a signed certificate
   catalog:
     catalog-cache:
       endpoint: <your-datacatalog-address>
       insecure: false

    This step is needed so the flytepropeller instance in the data plane cluster is able to send notifications back to the flyteadmin service in the control plane.

    The catalog service runs in the control plane and is used when caching is enabled. Note that catalog is not exposed via the ingress by default and does not have its own authentication mechanism. The catalog service in the control plane cluster can, for instance, be made available to the flytepropeller services in the data plane clusters with an internal load balancer service. See GKE documentation or AWS Load Balancer Controller if the clusters use the same VPC network.

  4. Install the Flyte data plane Helm chart. Use the same base values file you used to deploy the control plane:

    AWS


$ helm install flyte-core-data flyteorg/flyte-core -n flyte \
       --values values-eks.yaml --values values-dataplane.yaml \
       --create-namespace

    GCP

    $ helm install flyte-core-data -n flyte flyteorg/flyte-core  \
       --values values-gcp.yaml \
       --values values-dataplane.yaml \
       --create-namespace flyte

Control Plane configuration

For flyteadmin to access and create Kubernetes resources in one or more Flyte data plane clusters, it needs credentials to each cluster. Flyte makes use of Kubernetes Service Accounts to enable every control plane cluster to perform authenticated requests to the Kubernetes API Server in the data plane cluster. The default behavior is that the Helm chart creates a ServiceAccountin each data plane cluster. In order to verify requests, the Kubernetes API Server expects a signed bearer token attached to the Service Account. Starting with Kubernetes 1.24, the bearer token has to be generated manually.

  1. Use the following manifest to create a long-lived bearer token for the flyteadmin Service Account in your data plane cluster:

    $ kubectl apply -f - <<EOF
  apiVersion: v1
  kind: Secret
  metadata:
     name: dataplane1-token
     namespace: flyte
     annotations:
        kubernetes.io/service-account.name: flyteadmin
  type: kubernetes.io/service-account-token
  EOF

  2. Create a new file named secrets.yaml that looks like:

       apiVersion: v1
   kind: Secret
   metadata:
     name: cluster-credentials
     namespace: flyte
   type: Opaque
   data:

    The credentials have two parts (CA cert and bearer token).

  3. Copy the bearer token of the first data plane cluster’s secret to your clipboard using the following command:

    $ kubectl get secret -n flyte dataplane1-token \
          -o jsonpath='{.data.token}' | pbcopy

  4. Go to secrets.yaml and add a new entry under stringData with the data plane cluster token:

       apiVersion: v1
   kind: Secret
   metadata:
     name: cluster-credentials
     namespace: flyte
   type: Opaque
   data:
     dataplane_1_token: <your-dataplane1-token>

  5. Obtain the corresponding certificate:

    $ kubectl get secret -n flyte dataplane1-token \
          -o jsonpath='{.data.ca\.crt}' | pbcopy

  6. Add another entry in your secrets.yaml file for the certificate:

    apiVersion: v1
kind: Secret
metadata:
   name: cluster-credentials
   namespace: flyte
type: Opaque
data:
   dataplane_1_token: <your-dataplane1-token>
   dataplane_1_cacert: <your-dataplane1-token-certificate>

  7. Connect to your control plane cluster and create the cluster-credentials secret:

    $ kubectl apply -f secrets.yaml

  8. Create a file named values-override.yaml and add the following config to it:

    flyteadmin:
  additionalVolumes:
  - name: cluster-credentials
    secret:
      secretName: cluster-credentials
  additionalVolumeMounts:
  - name: cluster-credentials
    mountPath: /var/run/credentials
  initContainerClusterSyncAdditionalVolumeMounts:
  - name: cluster-credentials
    mountPath: /etc/credentials
configmap:
  clusters:
   labelClusterMap:
     label1:
     - id: dataplane_1
       weight: 1
   clusterConfigs:
   - name: "dataplane_1"
     endpoint: https://<your-dataplane1-kubeapi-endpoint>:443
     enabled: true
     auth:
        type: "file_path"
        tokenPath: "/var/run/credentials/dataplane_1_token"
        certPath: "/var/run/credentials/dataplane_1_cacert"

    Typically, you can obtain your Kubernetes API endpoint URL using kubectl cluster-info

    In this configuration, label1 and label2 are just labels that we will use later in the process to configure mappings that enable workflow executions matching those labels, to be scheduled on one or multiple clusters depending on the weight (e.g. label1 on dataplane_1). The weight is the priority of a specific cluster, relative to the other clusters under the labelClusterMap entry. The total sum of weights under a particular label has to be 1.

  9. Add the data plane IAM Role as the defaultIamRole in your Helm values file. See AWS example

  10. Update the control plane Helm release:

    This step will disable flytepropeller in the control plane cluster, leaving no possibility of running workflows there. If you require the control plane to run workflows, edit the values-controlplane.yaml file and set flytepropeller.enabled to true and add one additional cluster config for the control plane cluster itself:

    configmap:
   clusters:
      clusterConfigs:
      - name: "dataplane_1"
         ...
      - name: "controlplane"
         enabled: true
         inCluster: true  # Use in-cluster credentials

    Then, complete the helm upgrade operation.

    AWS

    $ helm upgrade flyte-core flyteorg/flyte-core \
       --values values-eks-controlplane.yaml --values values-override.yaml \
       --values values-eks.yaml -n flyte

    GCP

    $ helm upgrade flyte -n flyte flyteorg/flyte-core values.yaml \
       --values values-gcp.yaml \
       --values values-controlplane.yaml \
       --values values-override.yaml

  11. Verify that all Pods in the flyte namespace are Running:

    $ kubectl get pods -n flyte

    Example output:

    NAME                             READY   STATUS    RESTARTS   AGE
datacatalog-86f6b9bf64-bp2cj     1/1     Running   0          23h
datacatalog-86f6b9bf64-fjzcp     1/1     Running   0          23h
flyteadmin-84f666b6f5-7g65j      1/1     Running   0          23h
flyteadmin-84f666b6f5-sqfwv      1/1     Running   0          23h
flyteconsole-cdcb48b56-5qzlb     1/1     Running   0          23h
flyteconsole-cdcb48b56-zj75l     1/1     Running   0          23h
flytescheduler-947ccbd6-r8kg5    1/1     Running   0          23h
syncresources-6d8794bbcb-754wn   1/1     Running   0          23h

Configure Execution Cluster Labels

The next step is to configure project-domain or workflow labels to schedule on a specific Kubernetes cluster.

Project-domain execution labels

  1. Create an ecl.yaml file with the following contents:

    domain: development
project: project1
value: label1

    Change domain and project according to your environment. The value has to match with the entry under labelClusterMap in the values-override.yaml file.

  2. Repeat step 1 for every project-domain mapping you need to configure, creating a YAML file for each one.

  3. Update the execution cluster label of the project and domain:

    $ flytectl update execution-cluster-label --attrFile ecl.yaml

    Example output:

    Updated attributes from team1 project and domain development

  4. Execute a workflow indicating project and domain:

    $ pyflyte run --remote --project team1 --domain development example.py  training_workflow \                                                          ✔ ╱ docs-development-env 
          --hyperparameters '{"C": 0.1}'

Configure a Specific Workflow mapping

  1. Create a workflow-ecl.yaml file with the following example contents:

    domain: development
project: project1
workflow: example.training_workflow
value: project1

  2. Update execution cluster label of the project and domain

    $ flytectl update execution-cluster-label \
           -p project1 -d development \
           example.training_workflow \
           --attrFile workflow-ecl.yaml

  3. Execute a workflow indicating project and domain:

    $ pyflyte run --remote --project team1 --domain development example.py  training_workflow \                                                          ✔ ╱ docs-development-env 
          --hyperparameters '{"C": 0.1}'

Congratulations! With this, the execution of workflows belonging to a specific project-domain or a single specific workflow will be scheduled on the target label cluster.

Day 2 Operations

Add another Kubernetes cluster

The process can be repeated for additional clusters.

  1. Provision the new cluster and add it to the permissions structure (IAM, etc.).

  2. Install the data plane Helm chart following the steps in the Data plane deployment section.

  3. Follow steps 1-3 in the control plane configuration to generate and populate a new section in your secrets.yaml file. For example:

    apiVersion: v1
kind: Secret
metadata:
  name: cluster-credentials
  namespace: flyte
type: Opaque
data:
  dataplane_1_token: <your-dataplane1-token>
  dataplane_1_cacert: <your-dataplane1-token-certificate>
  dataplane_2_token: <your-dataplane2-token>
  dataplane_2_cacert:  <your-dataplane2-token-certificate>

  4. Connect to the control plane cluster and update the cluster-credentials Secret:

    kubect apply -f secrets.yaml

  5. Go to your values-override.yaml file and add the information of the new cluster. Adding a new label is not entirely needed. Nevertheless, in the following example a new label is created to illustrate Flyte’s capability to schedule workloads on different clusters in response to user-defined mappings of project, domain and label:

    ... #all the above content remains the same
   configmap:
   clusters:
   labelClusterMap:
      label1:
      - id: dataplane_1
         weight: 1
      label2:
      - id: dataplane_2
         weight: 1
   clusterConfigs:
   - name: "dataplane_1"
      endpoint: https://<DATAPLANE-1-K8S-API-ENDPOINT>.com:443
      enabled: true
      auth:
         type: "file_path"
         tokenPath: "/var/run/credentials/dataplane_1_token"
         certPath: "/var/run/credentials/dataplane_1_cacert"
   - name: "dataplane_2"
      endpoint: https://<DATAPLANE-1-K8S-API-ENDPOINT>:443
      enabled: true
      auth:
         type: "file_path"
         tokenPath: "/var/run/credentials/dataplane_2_token"
         certPath: "/var/run/credentials/dataplane_2_cacert"

  6. Update the Helm release in the control plane cluster:

    $ helm upgrade flyte-core-control flyteorg/flyte-core  -n flyte --values values-controlplane.yaml --values values-eks.yaml --values values-override.yaml

  7. Create a new execution cluster labels file with the following sample content:

    domain: production
project: team1
value: label2

  8. Update the cluster execution labels for the project:

    $ flytectl update execution-cluster-label --attrFile ecl-production.yaml

  9. Finally, submit a workflow execution that matches the label of the new cluster:

    $ pyflyte run --remote --project team1 --domain production example.py \
      training_workflow --hyperparameters '{"C": 0.1}'

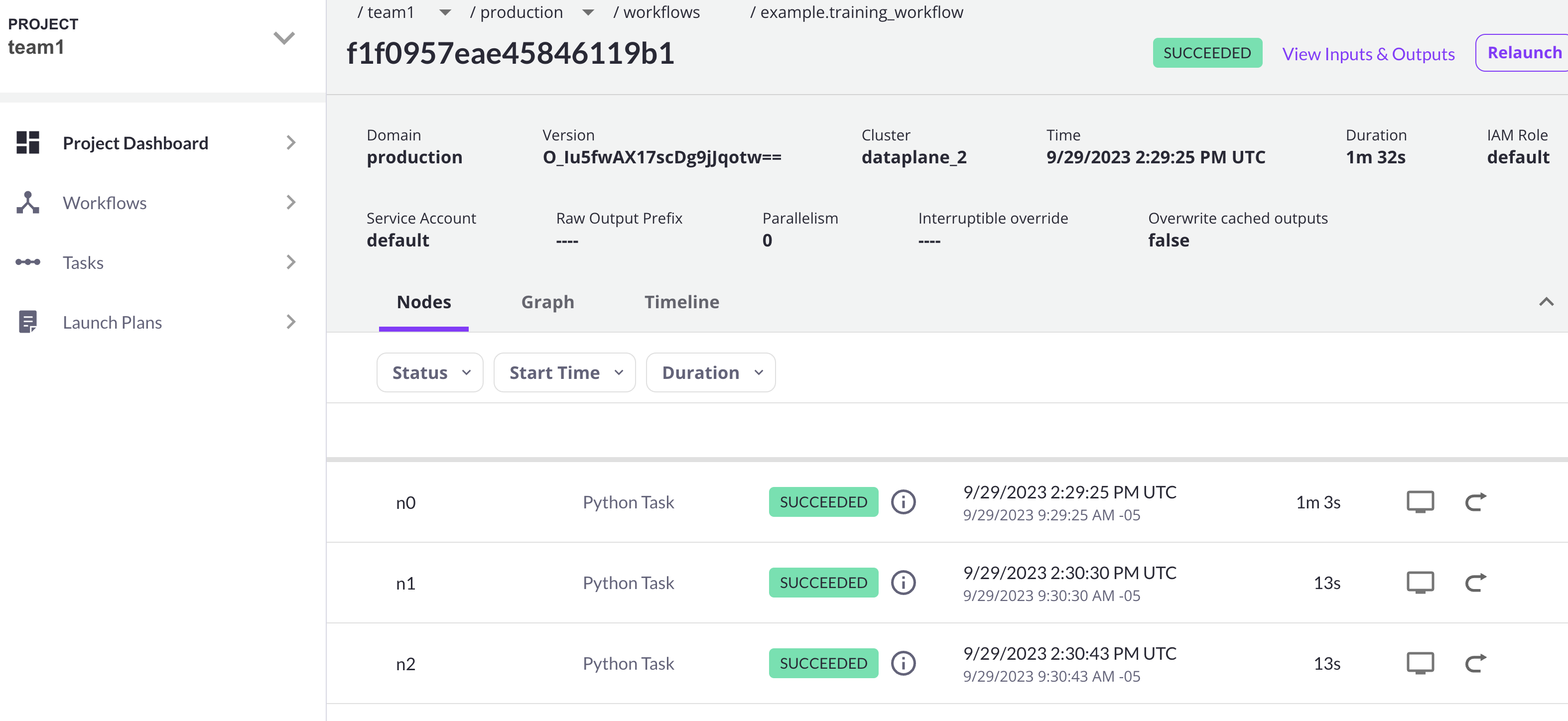

  10. A successful execution should be visible on the UI, confirming it ran in the new cluster:
